* Fluid-free service for steam, air, water and oil
* Small and compact, but large capacity
* Vertical or horizontal installation is possible

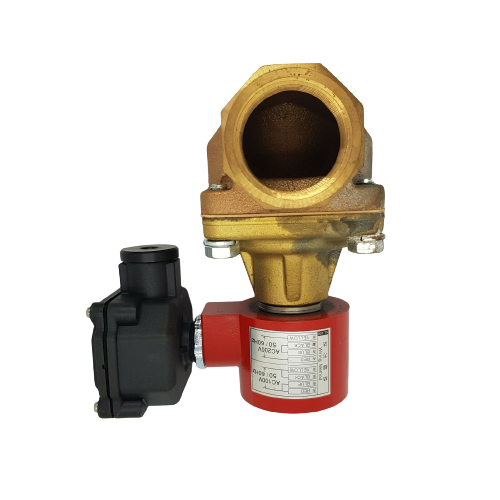

The DP-10 series are compact, Pilot-Operated and Piston type high reliability solenoid valves featuring wide application for such various as steam, air, water and oil. And also wide products variation for such various requirements as AC/DC voltage, normally closed/opened and brass/stainless made.

Feature    Piston type / AC / Bronze / Screwed
Category    Solenoid valve
Type    Piston type
Specifications    Application    Steam , Air , Cold and hot water , Oil (20 cSt or below)
Working pressure    0.05 - 1.0MPa
Min. differential pressure    0.05 MPa
Max. temperature    180 degree(C)
Rated voltage    AC 110 / 220 V selective 50 / 60 Hz common
Operation    Normally closed
Connection    JIS Rc (PT)
Material    Body    Bronze
Piston    Stainless steel
Valve disc    PTFE
