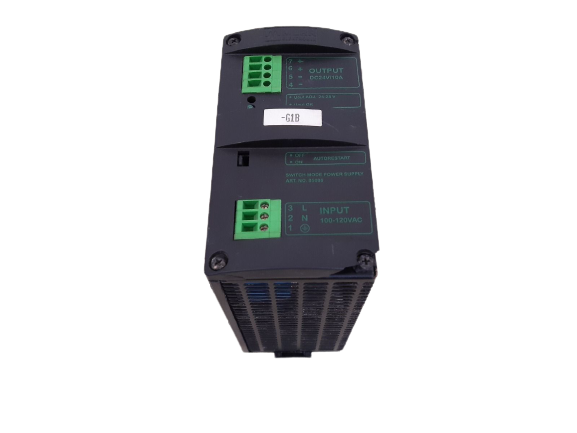

Brand: MURR Elektronik
MPN: MPS3-23024

Technical Data:
INPUT
Input voltage    90...265 V AC
Inrush current after 1 ms    max. 10 A
Primary fusing external    max. 10 A
Frequency    50...60 Hz
Input current    1.9 A (115 V AC); 0.95 A (230 V AC)
OUTPUT
Output voltage    24 V DC (SELV), +3/-1%
Output current    5 A (+60 °C); 6 A (+40 °C)
Mains failure bridging time    min. 10 ms (115 V AC); min. 80 ms (230 V AC)
Ripple    max. 20 mV eff/rms
Spikes    max. 100 mV ss/pp
Unit protection    short-circuit and overload protected
LED display    LED (green) at min. 22 V DC
Parallel usage/serial usage    no/yes
GENERAL DATA
Standards    EN 60950-1, EN 61204-3, EN 55022 B
Efficiency    85%
Relative humidity    5...95%, no condensation
Mounting method    DIN-rail mountable TH35 (EN 60715), additional plate for screw mounting Art.-No. 89500
Dimensions H×W×D    132×110×72 mm
Temperature range    0...+60 °C (storage temperature -25...+85 °C)
COMMERCIAL DATA
country of origin    CZ
customs tariff number    85044090
EAN    4048879080729
eClass    27049002
Packaging unit    1
