MINILEC

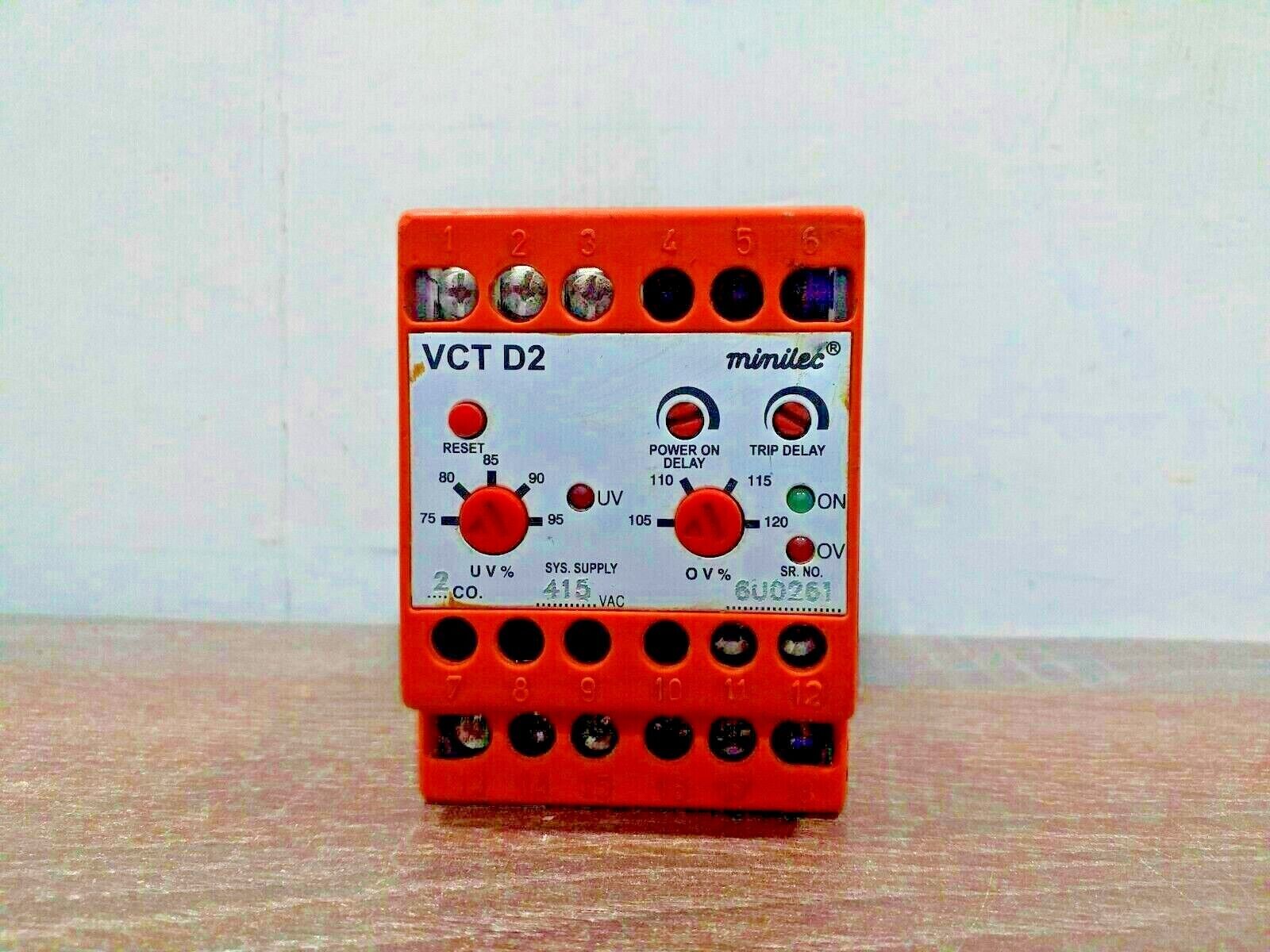

Minilec VCT D2 UnderOver Voltage Relay 3Phase 3Wire

Availability: In stock

• 3-Phase 3-Wire Under & Over voltage
• Auto/Manual Reset
• Adjustable under / over voltage settings
• Adjustable trip delay & ON delay
• 2 CO output relay
• System Supply 110/240/380/415/440 V AC +20%, – 25% 50/60Hz
• Output Relay Contact 2 CO
• Under Voltage75% - 95% (adjustable)
• Over Voltage 105 - 120% (adjustable)
• Trip Time Delay 1-10 secs. (adjustable) Power on Delay 1-10 secs. (adjustable) Reset Auto / Manual
• Weight 450 gms.
• Overall (L x W x D)76 x 56.5 x 117.5
• Mounting (L x W)67 x 46/ 35 mm rail Mounting
• Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)
